LC-36Y Turn-milling CNC machine
The LC-36Y is a CNC turning and milling machine that provides various possibilities of tooling combinations with a more powerful spindle (7.4 HP). It is the best solution to satisfy the diverse demand for metalworking and the goal to minimize the tool change time.
Classification：
CNC Lathe Machine
Hotline：
Product description
Main technical parameters of machine tool;
| Name | CNC lathe model | LC-36Y Turn-milling CNC machine | CNC Control System | CNC Control System | Micro-control bus system 630TA |
| Scope of work |
Maximum turning diameter of bed (mm) |
Φ400 |
Servo |
Micro control 23-bit absolute value |
|
|
Maximum machining diameter (mm) |
Φ200 |
Hydraulic system |
Electric power of hydraulic system |
750W |
|
|
Maximum machining length (mm) |
100 |
Tank capacity |
40L |
||
|
Bed saddle and horizontal inclination |
35° |
Hydraulic pump pressure |
70Kgf/cm2 |
||
|
Principal axis |
Spindle Motor Power (Kw) |
3.7Kw |
Water box |
Large lift soft cooling water pump |
120W lift 4m flow 50L/min |
|
Spindle Nose Taper |
A2-4 |
lubrication |
Automatic lubrication |
1.5L centralized quantitative automatic lubrication system |
|
|
Spindle type |
Sleeve spindle unit |
Transmission components |
Main shaft bearing |
P4 |
|
|
Diameter of main shaft through hole (mm) |
Φ45 |
Ball screw |
X:32*10(SHAC, Taiwan) |
||
|
Spindle speed range (r/min) |
0-4000 |
Guide |
X：25 Z：30 |
||
|
Spindle accuracy (mm) |
Shaft end radial runout ≤ 0.005 |
Repetitive positioning accuracy (mm) |
±0.003 |
||
|
Clamping device |
Hydraulic collet |
1 Individual |
Positioning Accuracy (mm) |
±0.005 |
|
|
Hydro-cylinder |
Swing cylinder |
Screw bearing |
SKF bearing |
||
|
Axis |
X-Axis (mm) |
700 |
Voltage |
AC three-phase power |
380V 50Hz |
|
Z-Axis (mm) |
250 |
Tricolor lamp |
Red light |
Generate alarm |
|
|
X-axis feed motor (N.M) |
4 |
Yellow light |
Position in readiness |
||
|
Z-axis feed motor (N.M) |
4 |
Green light |
Running state |
||
|
Maximum moving speed of X-axis (m/min) |
25 |
Electrical lamps |
Electric relay |
Fender, Italy |
|
|
Maximum moving speed of Z-axis (m/min) |
25 |
AC contactor |
Chint |
||
|
Blade adapter |
Tool holder form |
Cutter arrangement |
Working light |
LED |
|
|
Number of cutters |
-- |
Electrical capacity (A) |
|||
|
Specification of outer diameter and end face tool handle |
16 |
Weight |
Overall dimension (mm) |
1880*1400*1550 |
|
|
Diameter of inner hole cutterbed (mm) |
20 |
Machine weight (Kg) |
1500Kg |
||
|
Number of cutterbed |
6 |
|
Application
LC-36 provides both two-axis high-precision turning and the possibilities of complex multi-tasking operations like hard turning, taper turning, parting, facing, boring, grooving, reaming, drilling, threading, knurling, etc. Easily handle the bar materials with diameter max. Φ36 mm or individual workpieces diameter max. Φ350mm (Chuck size max. Φ50mm).

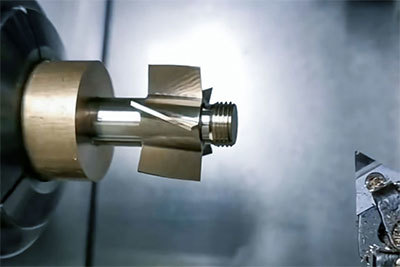

| Case Study Configuration: LC-36 installs the Hydraulic collect, Y-Axis Side Milling Device, and C-axis function* Workpiece: Turning a Φ32 small impeller from Φ32mm brass bar material Machining Process: Turning, threading, Facing, Milling, Parting. Turning Duration: within 30 seconds |
 |
The LC-36Y mill-turn machining center has a roomy working envelope with extensive X/Z travel so that more complicated workpieces could be achieved easily.
Thanks to the diverse tooling combinations, LC-36Y helps improve machining accuracy while reducing clamping times.
X-axis travel to 700mm and Z-axis to 250mm reducing the lathe footprint and enhancing stability and ease of chip removal.
Complex machining, such as turning and milling, can complete most of the process at one-time clamping, considerably reducing the processing time.

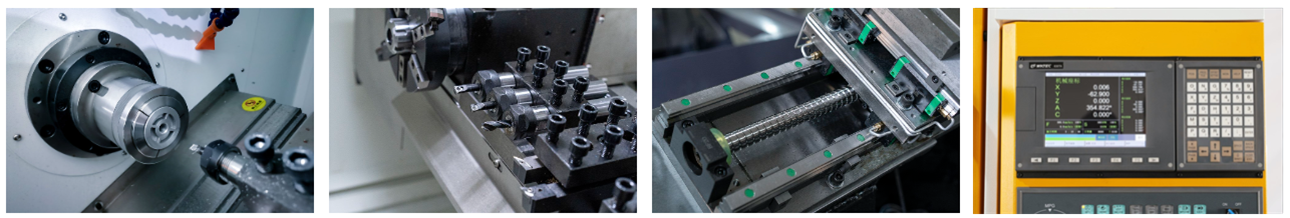

The main spindle is with C-axis function, high speed, high precision, and low vibration which can make the workpiece precise. Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.
CNC turning and milling machine Equips with Taiwan 32mm ball screw rod rail and 32mm linear guideway to provide precision and low vibration tool carriage movement.
Equips with auto lubrication system to ensure transmission system smoothly and long-lived.
Robust hydraulic collet chuck can hold bars up to Φ35mm and a single workpiece up to Φ50mm.

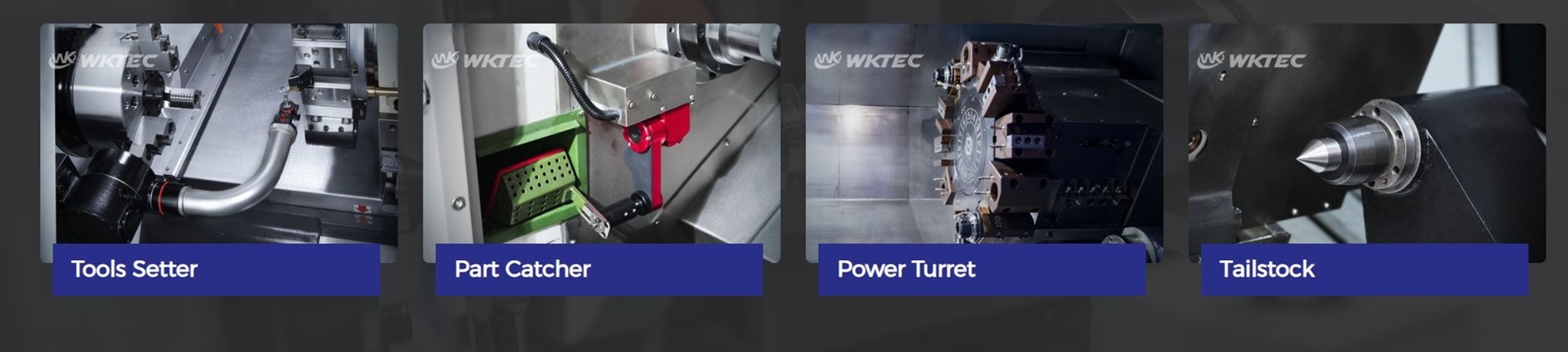

Automatic solutions are available for the bar feeder, gantry loading device, or robotic arms.
